介紹：
| ITEM | PART NUMBER | PART NAME | QTY | ITEM | PART NUMBER | PART NAME | QTY |
| 1 | VOE14528715 | •Housing | 1 | 26 | SA9325-06012 | ••Spring pin | 3 |
| 2 | VOE14538940 | •Bearing | 2 | 27 | SA7117-34340 | •Planet carrier | 1 |

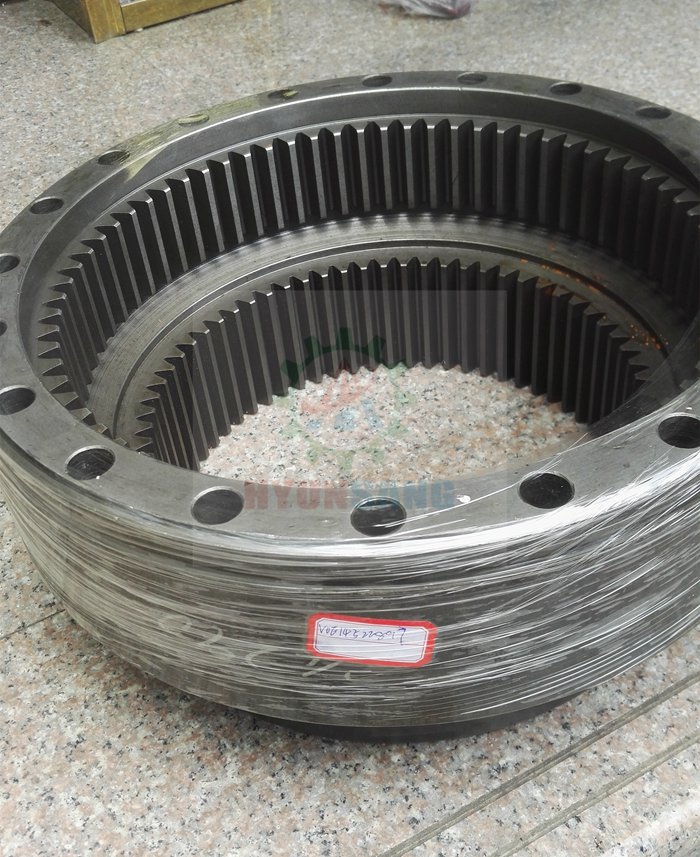

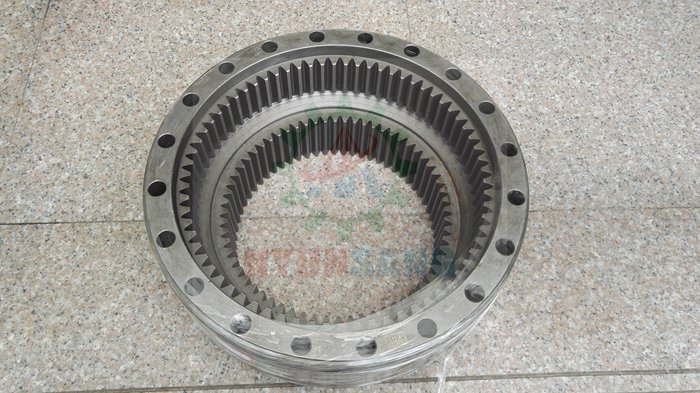

| 3 | SA7117-34120 | •Ring gear | 1 | 28 | SA7117-34350 | ••Planet carrier | 1 |
| 4 | SA9016-21818 | •Hex. socket screw | 20 | 29 | SA7117-34370 | ••Pin | 3 |
| 5 | VOE14528720 | •Seal | 1 | 30 | SA9325-06012 | ••Spring pin | 3 |
| 6 | SA9415-11042 | •Plug | 3 | 31 | SA7117-34360 | ••Gear | 1 |
| 7 | SA7117-34190 | •Retainer | 1 | 32 | SA7117-34440 | ••Retaining ring | 1 |
| 8 | VOE978932 | •Hexagon screw | 12 | 33 | SA7117-34420 | ••Planetary gear | 3 |
| 9 | SA7117-34200 | •Planet carrier | 1 | 34 | SA7117-34380 | ••Needle bearing | 3 |
| 10 | SA7117-34210 | ••Carrier | 1 | 35 | SA7117-34390 | ••Washer | 3 |
| 11 | SA7117-34220 | ••Planetary gear | 4 | 36 | SA7117-34400 | ••Washer | 3 |
| 12 | SA7117-34230 | ••Needle bearing | 8 | 37 | SA9541-01034 | ••Retaining ring | 3 |
| 13 | SA7117-34240 | ••Washer | 8 | 38 | SA1036-00290 | •Thrust ring | 2 |
| 14 | SA7117-34250 | ••Pin | 4 | 39 | SA7117-34430 | •Gear | 1 |
| 15 | SA9325-08016 | ••Spring Pin | 4 | 40 | VOE14601854 | •Cover | 1 |
| 16 | VOE14528721 | •Planet carrier | 1 | 41 | VOE955922 | •Spring washer | 16 |
| 17 | VOE14528722 | ••Carrier | 1 | 42 | SA9011-11007 | •Bolt | 16 |
| 18 | SA1036-00310 | ••Thrust ring | 1 | 43 | SA7117-34140 | •Shim | 1 |
| 19 | SA7117-34280 | ••Gear | 1 | 44 | SA7117-34150 | •Shim | 1 |
| 20 | SA8230-21020 | ••Thrust ring | 1 | 45 | SA7117-34160 | •Shim | 1 |
| 21 | SA7117-34290 | ••Retaining ring | 1 | 46 | SA7117-34170 | •Shim | 1 |
| 22 | SA7117-34300 | ••Planetary gear | 3 | 47 | SA1036-00450 | •Shim | 1 |
| 23 | SA7117-34310 | ••Needle bearing | 3 | 48 | SA1036-00460 | •Shim | 1 |
| 24 | SA7117-34320 | ••Washer | 6 | 49 | VOE990557 | •O-ring | 3 |
| 25 | SA7117-34330 | ••Pin | 3 | 50 | VOE14526221 | Overhaul kit | 1 |
